| Tipo de pagamento: | T/T,by Credit Card or Local Payment |
| Incoterm: | CFR,CIF,EXW,CPT,DDU,DDP |
| Quantidade de pedido mínimo: | 10 Piece/Pieces |
| transporte: | Ocean,Land,Air,by Rail |
| porta: | Ningbo,Shanghai,Shenzhen |
Sombra:
Modelo: NO Water Drips Design
marca: Sistema de ar condicionado de elevador de alta qualidade
Serviço De Garantia: 2 anos
Serviço Pós-venda: Suporte técnico online
Capacidade De Solução De Engenharia: solução total para projetos
Cenário De Aplicação: Hotel, Villa, Apartamento, Prédio comercial, Hospital, Escola, Shopping center, Supermercado
Estilo De Design: escandinavo, japonês, francês, Mediterrâneo, europeu, Asiática, chinês
Lugar De Origem: China
With CE Approval: YES
NO Water Drips Design: YES
Easliy Install & Dissembling: YES
Energy Saving: YES
Low Noise Operation: YES
Special Model AC110V/60Hz: As An Option At Extra Cost
Refrigerant: R410A
Voltage/Frequency: AC220-230V ～ 60Hz
Directed Mainly For: Taiwan, Japan, Brazil, Philippines, USA
| Unidades de venda | : | Piece/Pieces |
| Tipo de pacote | : | Caso de compensado de embalagem de exportação padrão internacional |
The file is encrypted. Please fill in the following information to continue accessing it

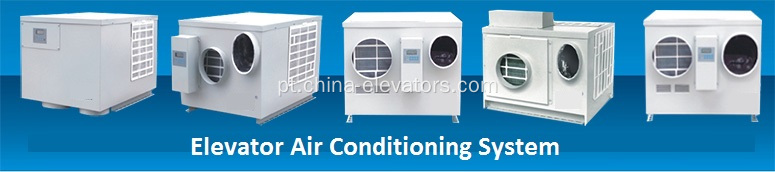

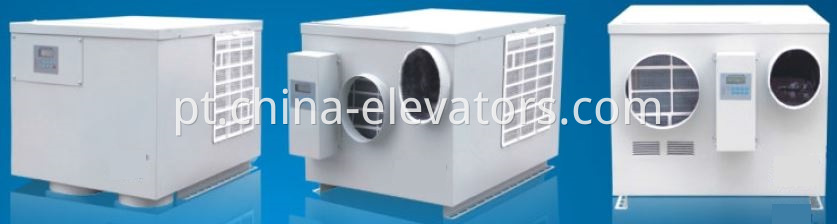

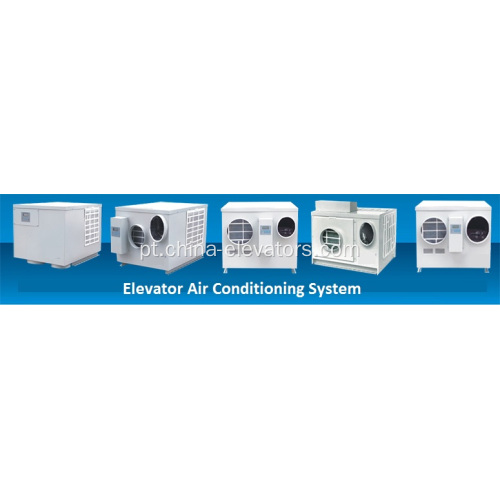

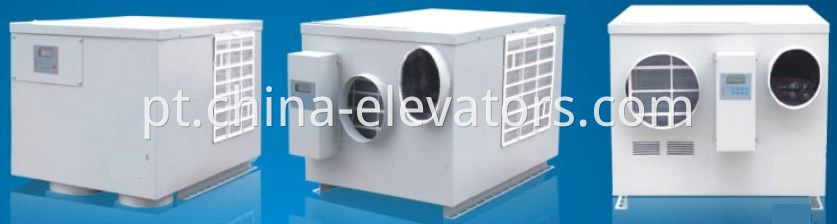

Ar condicionado de elevador de 60Hz com refrigerante R410A
Sem design de pingos de água
|
Part No. |
ACR-HH-26Z |
ACR-HH-D26Z |
ACR-HH-26QZ |
ACR-HH-D26QZ |
ACR-HH-35QZ |
ACR-HH-D35QZ |
|
Rated Cooling Capacity(W) |
2600 |
2600 |
2600 |
2600 |
3500 |
3500 |
|
Rated Heating Capacity(W) |
/ |
2200 |
/ |
2200 |
/ |
2200 |
|
Air Flow (High/Low, m3/h ) |
430/340 |
430/340 |
430/340 |
430/340 |
550/440 |
550/440 |
|
Rated Cooling Input Current(A) |
4.3 |
4.3 |
4.3 |
4.3 |
5.4 |
5.4 |
|
Rated Heating Input Current(A) |
/ |
10 |
/ |
10 |
/ |
10.3 |
|
Rated Cooling Input Power(W) |
950 |
950 |
950 |
950 |
1220 |
1220 |
|
Rated Heating Input Power(W) |
/ |
2200 |
/ |
2200 |
/ |
2255 |
|
Noise dB (A) |
＜53 |
＜53 |
＜55 |
|||
|
Voltage/Frequency |
220-230V~60Hz |
|||||
|
Refrigerant |
R410A |
|||||
|
Water Proof Level |
IPX4 |
|||||
|
Insulated Voltage Grade |
I Grade |
|||||
|
Compressor Protection |
Overheat protection; Over current protection; Delay startup protection |
|||||
|
Control Mode |
Standard: Program control (automatically ) +infrared remote control (Manually) Remote control (automatically ) +infrared remote control (Manually) as an option at extra cost |
|||||
|
Dimensions (L×W×H)mm |
615×455×435 |
615×455×435 |
545×455×435 |
545×455×435 |
640×570×510 |
|
|
Weight(kg) |
39.5 |
40 |
38.5 |
39 |
57 |
57.5 |
|
For Elevator Load Capacity(kg) |
≤1350 |
≤1350 |
≤1350 |
≤1350 |
1350-1600 |
|
|
Air Out, Air Return |
from bottom ,to bottom |
from front, to front |
from front ,to front |
|||
Carregamos ar condicionado de alta qualidade para todas as principais marcas de elevador e escada rolante
for OTIS Elevators, ThyssenKrupp Elevators, KONE Elevators, Mitsubishi Elevators, Fujitec Elevators, Hitachi Elevators, Toshiba Elevators, Fuji Elevators, Express Elevators, Sigma Elevators, LG Elevators, Hyundai Elevators, BLT Elevators, CANNY Elevators, SJEC Elevators, KOYO Elevators
